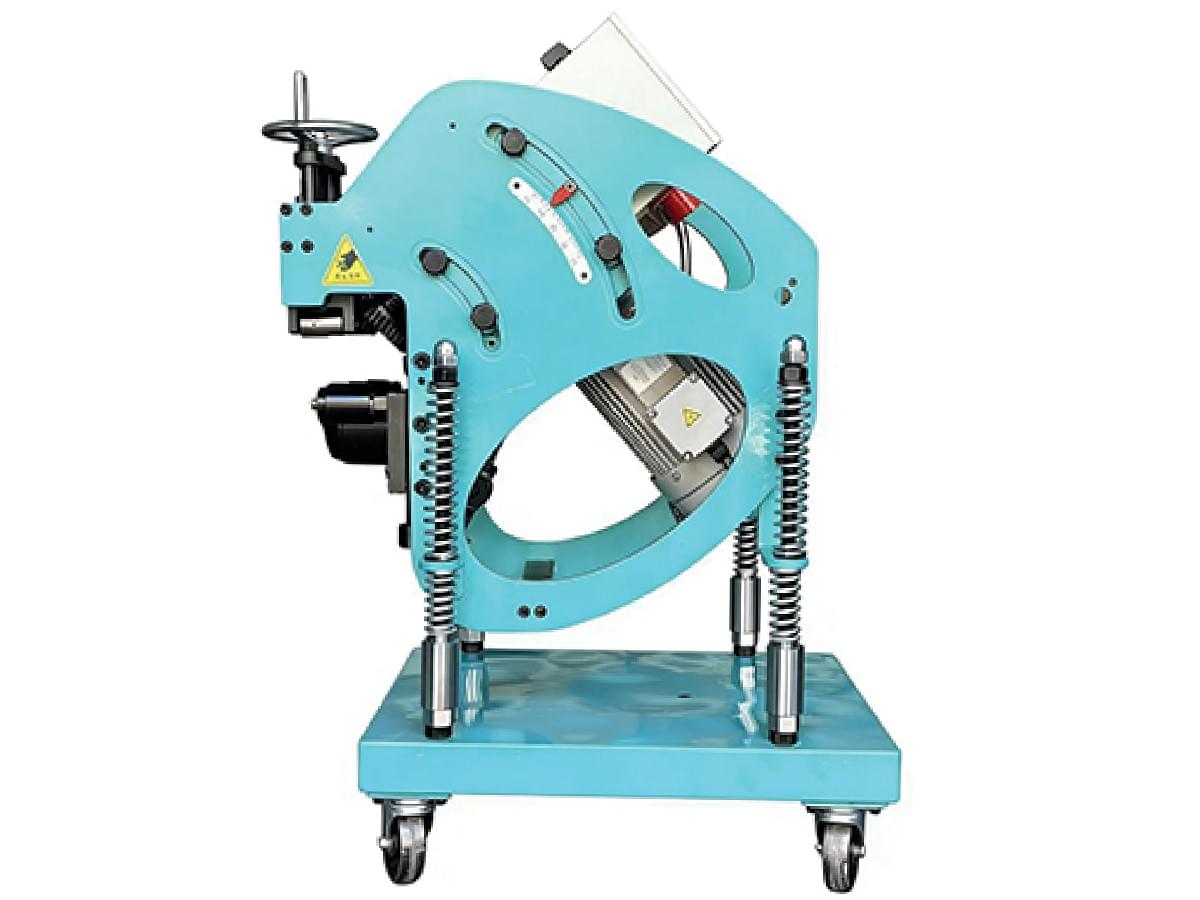

Model: YS9-40D Self-propelled Rolling Shear Beveling Machine

1. Main Motor Power: 2.2KW/380V/50Hz
2. Clamping Range: Steel plate 9-40mm; Round pipe diameter＞170mm
3. Bevel Angle: 25° -45°
4. Bevel Speed: 2.4m - 3m/min
5. Max Machining Section: 28mm
6. Bevel Type: K / V / X / Y bevel
7. Cutter Head Diameter: 115mm
8. Cutter Head: Disc cutter (Blade can be reground & reused)
9. Lifting System: Electric lifting, 160mm vertical stroke adjustable freely
10. Clamping Mode: Manual plate clamping, Min. clamping width ≥80mm
11. Drive Clamping Assembly: 8 sets of driving wheels (5 upper + 3 lower)
12. Processable Materials: Carbon steel, stainless steel, aluminum, etc.

YS9-40D Self-propelled Rolling Shear Beveling Machine, high-efficiency cold cutting bevel equipment! Cold cutting technology avoids plate overheating during processing. Smooth bevel surface meets welding requirements, workpieces support direct NDT inspection. Processing efficiency is 2~3 times higher than ordinary bevelers, featuring ultra-low noise and lower power consumption. Continuously adjustable bevel angle from 25° to 45°, supports K/V/X/Y multiple bevel shapes. Suitable for 9-40mm steel plate and round pipes over 170mm diameter. Electric lifting system with 160mm adjustable stroke; 8 driving wheels ensure stable plate feeding. Disc cutters can be reground repeatedly to reduce consumable cost. Compact body with user-friendly control panel, easy to operate. Perfect high-efficiency equipment for plate beveling in steel structure, sheet metal and pressure vessel industries.
